Electrode paste

Electrode paste

Electrode Paste 1. Made from petroleum coke and asphalt through melting, mixing, kneading, and molding. 2. Used as a conductive material in ferroalloy furnaces and calcium carbide furnaces. 3. Designed for low resistivity, stable conductivity, and reliable furnace operation. 4. Suitable for large-scale and sealed submerged arc furnace applications. Electrode Paste Shapes Egg Trapezoid Cylinder Applications Specific Consumption Competitive Edge Rongxing Electrode Paste delivers stronger performa···
Inquire now
Product details

Electrode Paste

1. Made from petroleum coke and asphalt through melting, mixing, kneading, and molding.
2. Used as a conductive material in ferroalloy furnaces and calcium carbide furnaces.
3. Designed for low resistivity, stable conductivity, and reliable furnace operation.
4. Suitable for large-scale and sealed submerged arc furnace applications.

Electrode Paste Shapes

Egg Shape Electrode Paste
Egg
Trapezoid Electrode Paste
Trapezoid
Cylinder Electrode Paste
Cylinder

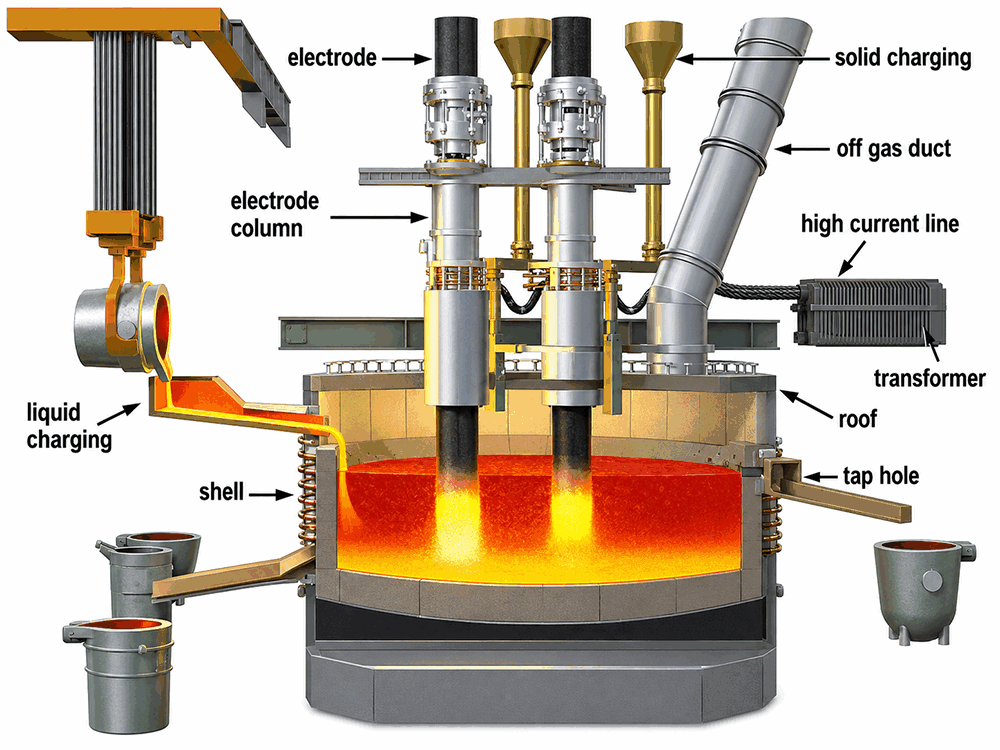

Applications

Electrode Paste Application

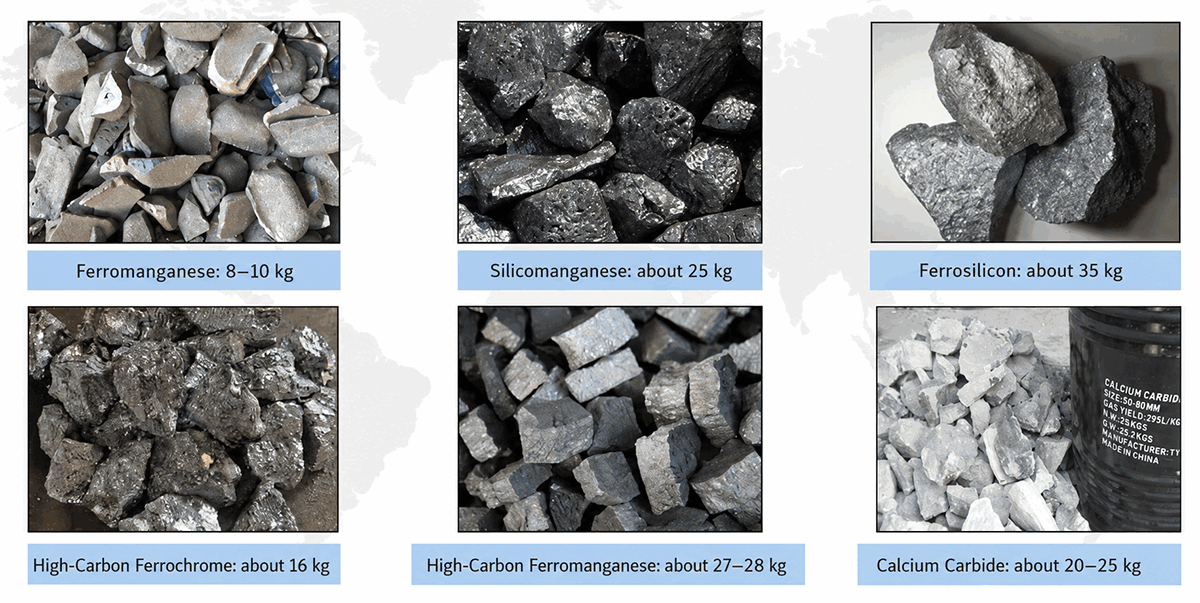

Specific Consumption

Specific Consumption

Competitive Edge

Rongxing Electrode Paste delivers stronger performance through optimized formulation, automated production, stable capacity, and source-factory cost control.

01

Product Advantages

  • Improved electrode paste formulation helps reduce ash content and increase strength, lowering consumption during use.
  • Specific consumption performance is better than that of world-leading brands.
  • Rongxing electrode paste uses authentic Ningxia Taixi anthracite coal, which features low volatile matter, low ash, high carbon content, low resistance, and high strength.
  • Large-scale output helps reduce purchasing and management costs per ton, making the product more cost-effective.
02

Production Advantages

  • Fully automated production lines precisely control raw material ratios, keeping volatile matter deviation within 0.1%.
  • Daily production capacity reaches 600 tons, supporting stable supply for bulk orders.
  • In 2008, RMB 28 million was invested in CNC equipment upgrades, reducing feeding error to within 2 kg.
  • Current annual capacity reaches 200,000 tons. With the new Lianyungang plant adding 100,000 tons per year, total annual capacity will reach 300,000 tons.
03

Cost Advantage

As a source manufacturer located in a metallurgical raw material industrial base, Rongxing can effectively control production costs from raw material procurement to manufacturing.

Source Factory Raw Material Base Stable Supply Cost-effective

Accreditation Certificates

Click any certificate to view a larger image.

Certificate 1
Certificate 2
Certificate 3
Certificate 4

Advantages of Rongxing Electrode Paste

VISION
Vision & Values Driven

Driven by values to improve product competitiveness and customer value.

35+ YEARS
Industry Experience

Founded in 1992 with proven furnace application experience.

62 USERS
Application Endorsement

Used in ferroalloy, silicon metal, nickel iron and ferrochrome.

34 COUNTRIES
Global Export Experience

Proven in different climates and production conditions worldwide.

FORTUNE 500
Trusted by Leading Clients

Trusted by leading users for quality, delivery and service.

ON-SITE SERVICE
Customized Solutions

Specifications are adjusted to actual furnace conditions.

300,000 TONS
Annual Capacity

Stable capacity supports bulk orders and long-term supply.

COMPETITIVE
Comprehensive Strength

Competitive price, flexible payment, quality and fast delivery.

Electrode Paste Advantage Electrode Paste Production

Technical Service Support

1. Professional engineers with practical electrode paste application experience.
2. Furnace condition analysis based on real production needs.
3. Guidance to improve performance and reduce specific consumption.
4. Early problem identification and reliable after-sales support.
Technical Service Support

Product Parameters

The following data is based on ERAMET requests and Rongxing Carbon supplier test values.

Property Method Unit ERAMET Requests Supplier: Rongxing Carbon
Min Max Cylinder Briquettes
Raw Paste
Water Content / 水分 ISO 11412 % 0.09 0.2 0.2 0.8
Plasticity / Flowability / 流动性系数 R&D Carbon - 1.2 1.8 1.14 1.22
Green Apparent Density / 表观密度 ISO 12985-1 kg/dm³ 1.572 1.666 1.66 1.64
Baking Behaviour
Baking Loss / 焙烧烧损率 M131-1 % 10 12 12.9 10.8
Baking Shrinkage / 焙烧收缩率 M132-1 % 3.9 6.5 5.8 6.3
Baked Paste 1000°C
Baked Apparent Density / 表观密度 ISO 12985-1 kg/dm³ 1.44 1.54 1.53 1.56
Total Porosity / 孔隙率 - % 18.4 23.1 24 22.6
Specific Electrical Resistance / 比电阻 ISO 11713 μΩm 58 72 66 68
Flexural Strength / 抗折强度 ISO 12986-1 MPa 4 8 4.2 5.2
Compressive Strength / 抗压强度 ISO 18515 MPa 18 35 20.0 25
Elasticity Modulus Static / 静态弹性模量 ISO 18515 GPa 2 4 2.6 2.8
Dynamic Elasticity Modulus / 动态弹性模量 DIN 51915 GPa 4 7 6.2 5.9
Fracture Energy M184 J/m² 109 235 - -
Coefficient of Thermal Expansion / 热膨胀系数 ISO 14420 10⁻⁶/K 3 4 3.72 3.78
Thermal Conductivity / 热导率 ISO 12987 W/mK 3 6 3.51 3.52
TSR - R' Init. - W/m 998 3,032 - -
TSR - R' Prop. - W/m⁰·⁵ 127 498 - -
Real Density in Xylene / 真密度 ISO 9088 kg/dm³ 1.84 2.04 2.018 2.014
Air Permeability / 空气渗透率 ISO 15906 nPm 5 15 18.7 9.9
Ash Content / 灰分 ISO 8005 % 0 5 2.1 2.3
We look forward to discussing your requirements and developinga quote for your review.
