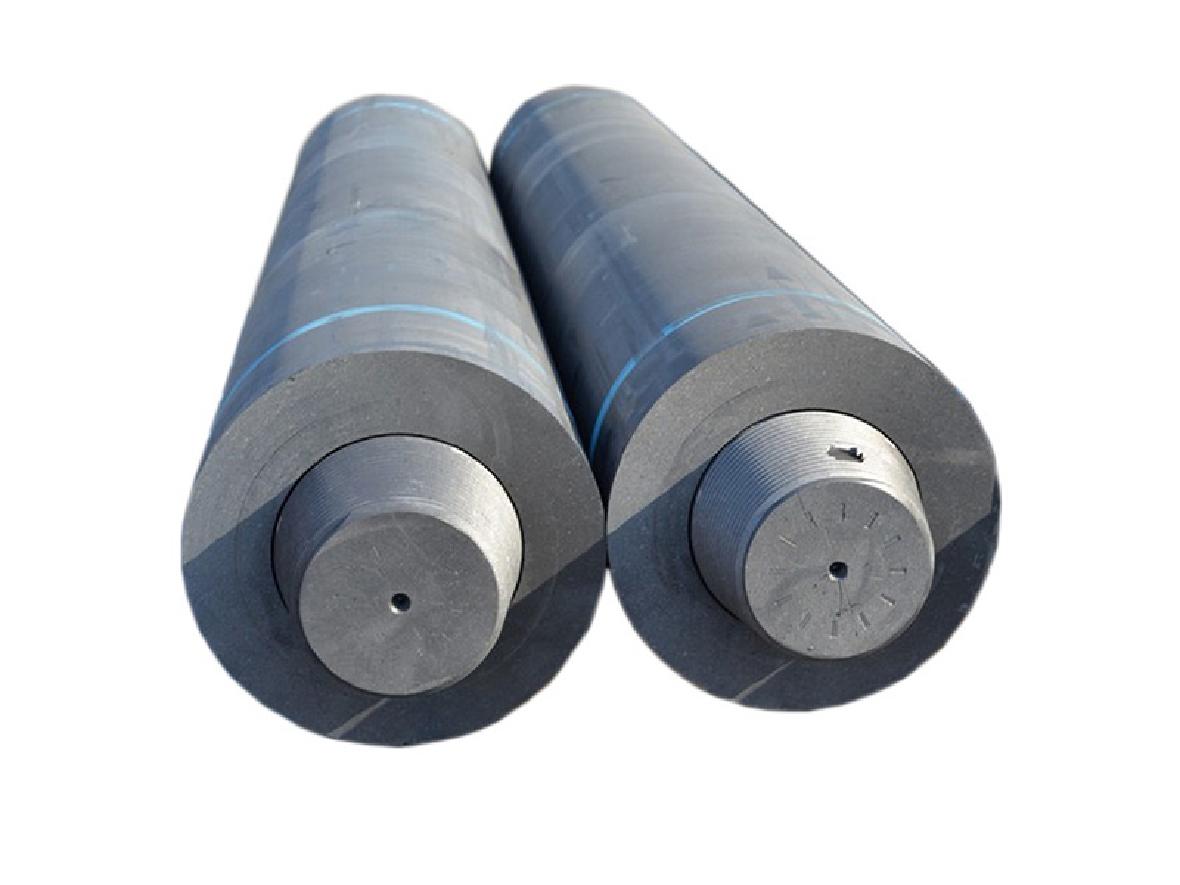

Graphite electrode:
The graphite electrode is primarily made from petroleum coke and needle coke, using coal pitch as a binder. It undergoes processes such as calcination, compounding, kneading, pressing, baking, impregnation, graphitization, and machining. As an arc conductor in electric arc furnaces, it releases electrical energy to heat and melt the furnace charge. It features low resistivity, good conductivity, low ash content, a uniform and compact structure, strong oxidation resistance, and high mechanical strength.
Product Advantages
✔ High Output & Guaranteed Delivery
● Annual production capacity: 80,000 tons
✔ Superior Performance
● Low resistivity
● Excellent thermal & electrical conductivity
● Low ash content (UHP: ≤0.3%; HP: ≤0.2%; RP: ≤0.5%)
● Reduced electrode consumption
● Strong oxidation resistance
✔ Premium Raw Materials
● 80% needle coke content (Imported from Japan & South Korea)
Applications

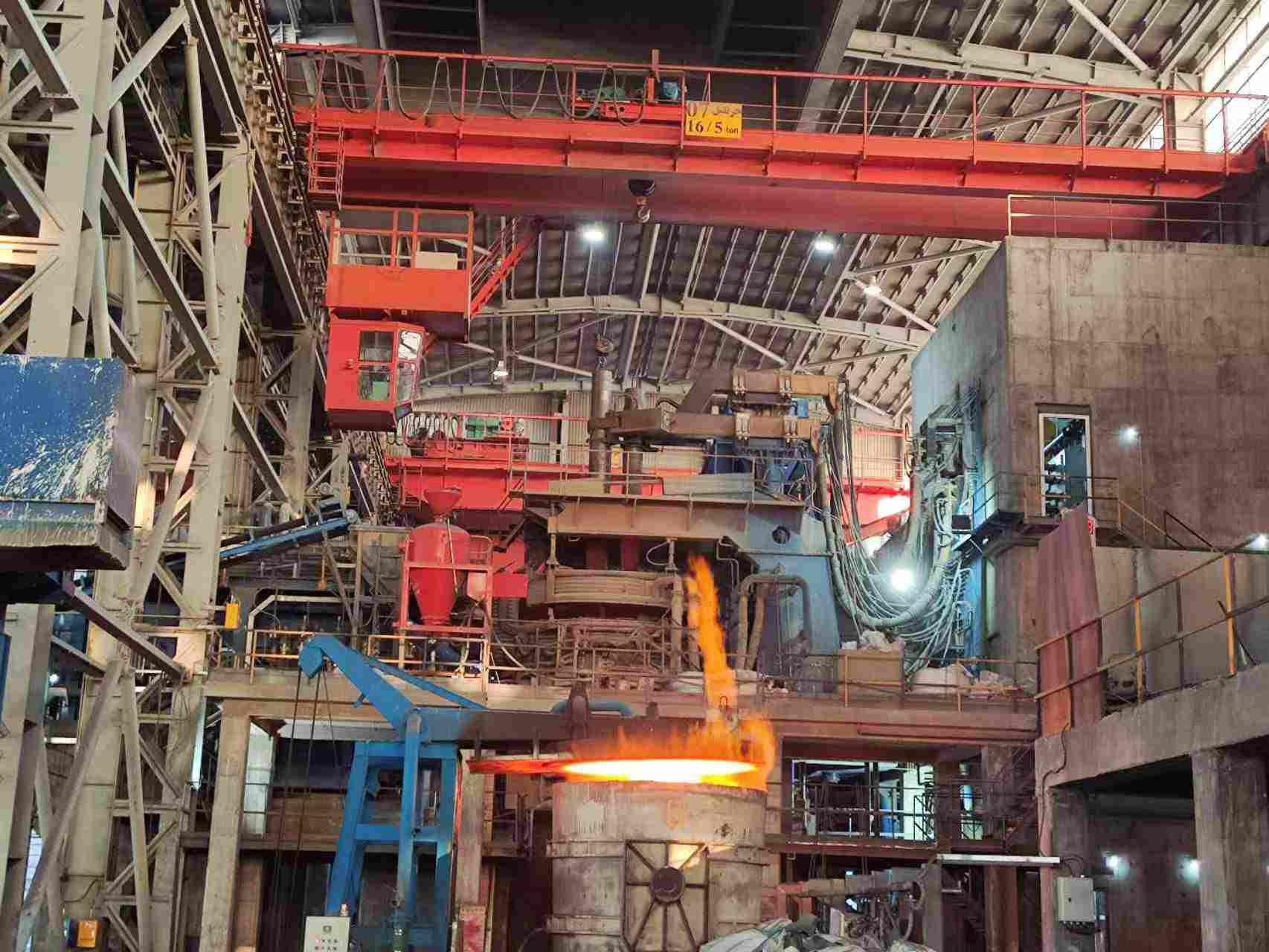

● Electric arc steelmaking furnaces
● Ladle furnaces
● Resistance furnaces
Item | Unit | Graphite Electrode | ||||
RP(mm) | HP(mm) | UHP(mm) | ||||
φ100-φ600 | φ100-φ800 | φ200-φ500 | φ550-φ800 | |||
Resistivity | Electrode | μΩm | 7.0-10.0 | 5.8-6.6 | 4.8-5.8 | 4.6-5.8 |
Nipple | 4.0-4.5 | 3.5-4.0 | 3.5-4.0 | 3.5-4.0 | ||
Modulus of Rupture | Electrode | Mpa | 8.0-10.0 | 10.0-13.0 | 10.0-14.0 | 10.0-14.0 |
Nipple | 19.0-22.0 | 20.0-23.0 | 20.0-24.0 | 22.0-26.0 | ||
Young's Modulus | Electrode | Gpa | 7.0-9.3 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
Nipple | 12.0-14.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
Bulk Density | Electrode | g/cm3 | 1.53-1.56 | 1.64-1.68 | 1.68-1.74 | 1.68-1.74 |
Nipple | 1.70-1.74 | 1.75-1.80 | 1.78-1.82 | 1.78-1.84 | ||
CTE (100-600℃) | Electrode | 10-6/℃ | 2.2-2.6 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 |
Nipple | 2.0-2.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | ||
Ash | % | 0.5 | 0.2 | 0.3 | 0.3 |
